Paper Core Making Machine
Single-Knife CNC Precision Cutting Machine
Specifications
- Tube length: 2700mm
- Cutting length: 1-2700mm
- Tube wall thickness: 5-15mm
- Tube diameter: 76mm (not standard)
- Cutter quantity: 1 set
- Cutter material: YG20 mold steel
- Cutting method: pneumatic cutting
- Control method: servo NC control
- Feeding method: manual feeding
- Motor power: 2.2kW
- Cutter power: 1.8kW (servo)
- Dimensions: 3700×800×1200 mm

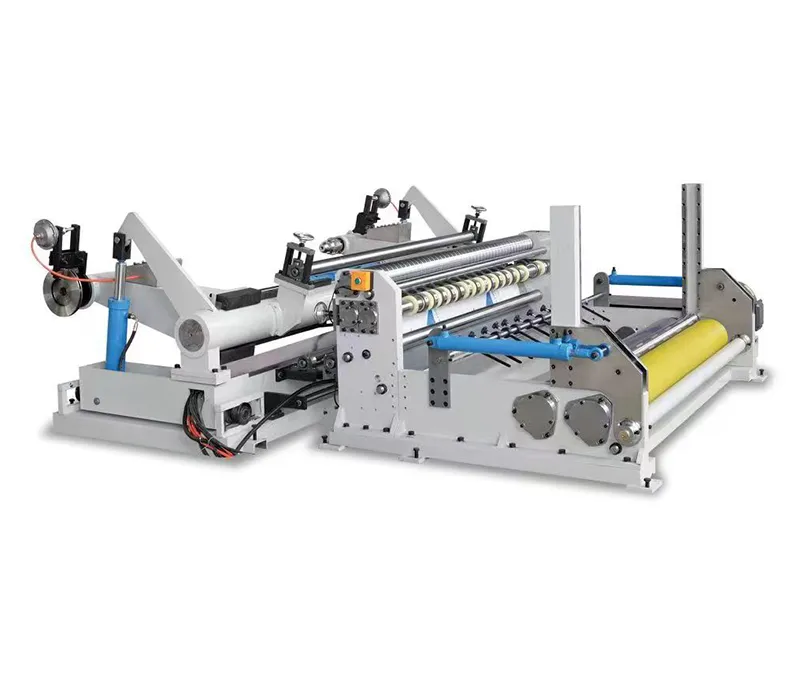

Fully Automatic Slitting and Rewinding Machine
Specifications
- Max. raw paper width: 1600mm
- Min. raw paper width: 800mm
- Raw paper roll diameter: 1200mm
- Rewinding diameter: 1200mm
- Raw paper core diameter: 76mm
- Slitting width: 45-1600mm
- Raw paper weight: 60-510g⁄m²
- Max. speed: 450m/min
- Main motor power: 11kW
- Speed control: variable frequency speed control
- Machine weight: 2.85T
- Dimensions: 3400×4000×1115mm

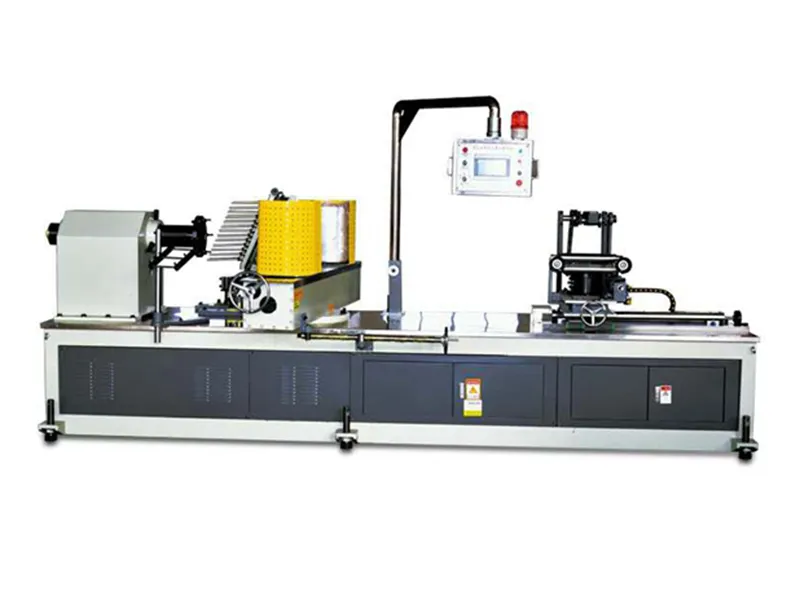

2-Head Paper Tube Making Machine
Specifications
- Tube diameter: 20-80mm
- Tube wall thickness: 2-8mm
- Speed: 0-20m/min
- Cutting length: 1-3m
- Main motor power: 2.2kW×2
- Cutter power: 0.75kW
- Speed control: variable frequency speed control
- Drive: motor direct drive
- Cutting method: infrared control, automatic track cutting
- Cut error: 3mm

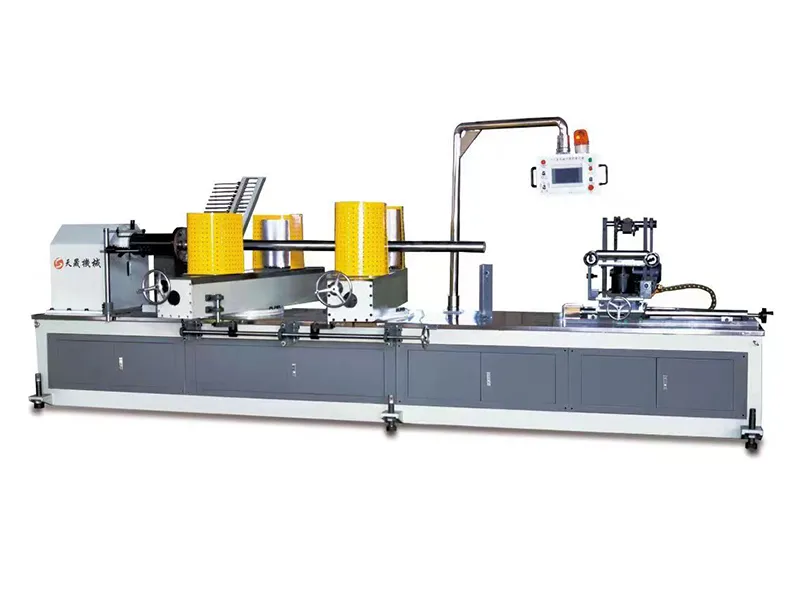

4-Head Paper Tube Making Machine
Specifications
- Tube diameter: 50-200mm
- Tube wall thickness: 2-15mm
- Speed: 0-15m/min
- Cutting length: 1-4m
- Speed control: variable frequency speed control
- Drive: reducer chain drive
- Cutting method: infrared control, automatic track cutting
- Cut error: 3mm

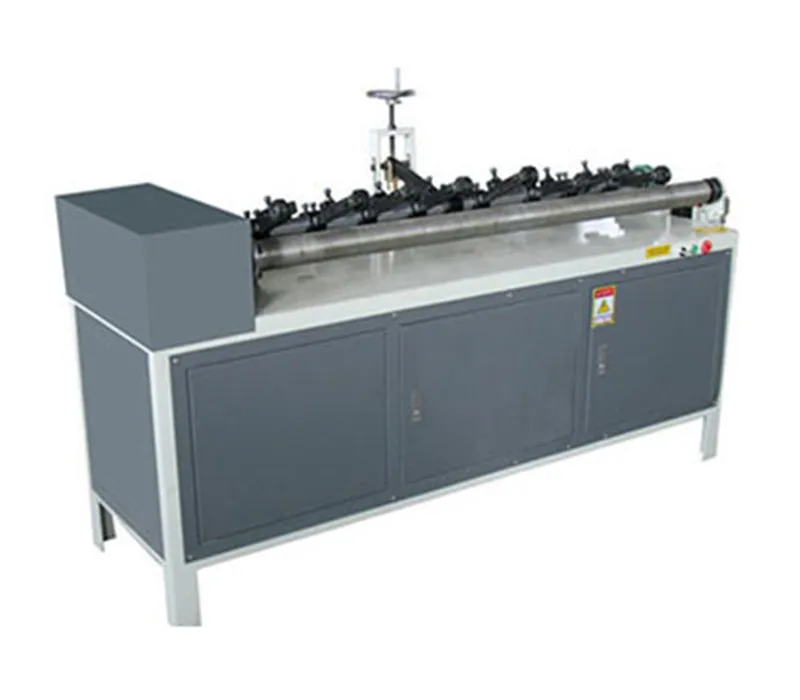

Semi-Automatic Paper Tube Cutting Machine
Specifications
- Tube length: 1500mm
- Cutting length: 35-1500mm
- Cutting thickness: 0-15mm
- Tube diameter: 76 (non-standard)
- Cutter quantity: 8
- Feeding method: manual feeding
- Control method: button control
- Motor power: 1.5kW
- Dimensions: 2100×600×1100mm
