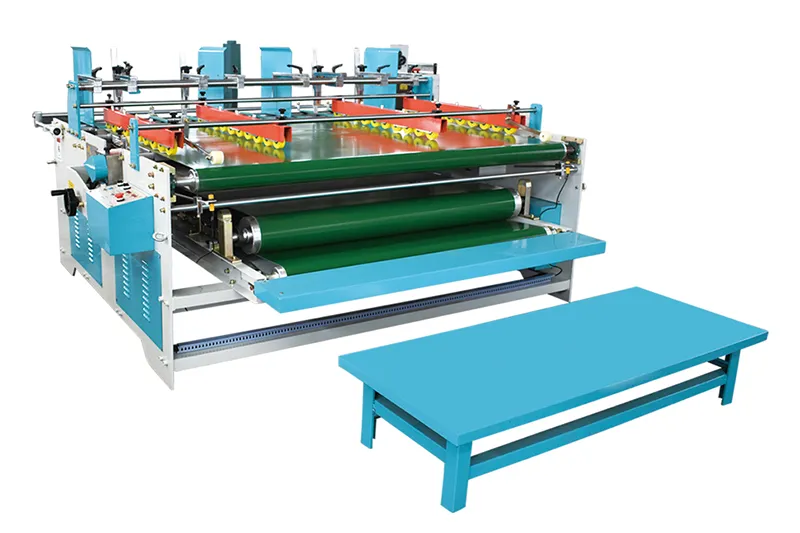

Semi-Automatic Folder Gluer with Press Conveyor
Compact gluing and folding machine for small batch production of cardboard boxes
Semi-Automatic Folder Gluer with Press Conveyor
Compact gluing and folding machine for small batch production of cardboard boxes
The semi-automatic folder gluer with press conveyor is tailored for businesses needing efficient and compact solutions for small batch production of cardboard boxes. It simplifies the gluing and folding process, making it easier and faster to produce high-quality boxes without requiring extensive experience from the operators.
Specifications
| Model | ||
| Voltage | 3-380VAC | 3-380VAC |
| Frequency | 50/60HZ | 50/60HZ |
| Power | 3.2kW | 3.2kW |
| Current | 6.3A | 7A |
| Weight | 1.0T | 1.3T |
| Machine dimensions (L×W×H) | 2200×1900×1300mm | 2200×2400×1300mm |
| Max. size of box (L×W) | 1500×1100mm | 1800×1100mm |
| Min. size of box (L×W) | 200×260mm | 200×260mm |
Features
- Uses only one-third of the glue compared to manual gluing, ensuring strong and neat adhesion without overflow
- Operates at a maximum speed of 56 meters per minute, which is four times more efficient than manual operations
- Equipped with a double-headed polisher that removes UV film or laminated layers from the adhesive area, enhancing glue adhesion and solving the issue of boxes coming apart in certain seasons
- Polishing wheels made from high-hardness materials for extended lifespan
- High-speed polishing wheels and an efficient dust collector keep the working environment clean and tidy
