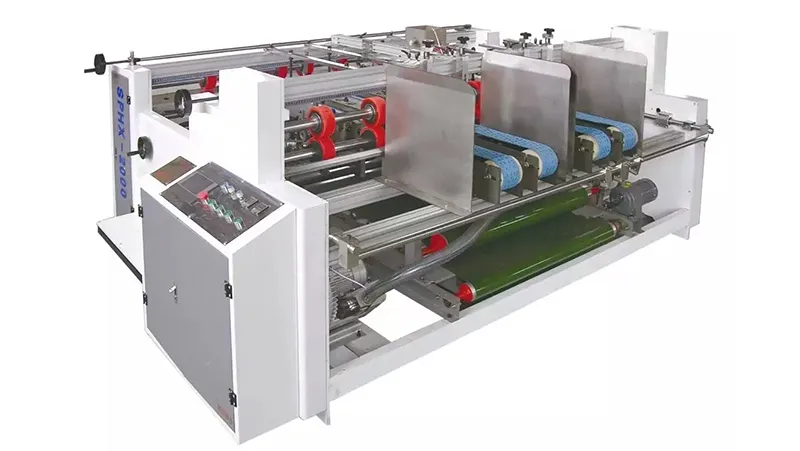

Two-Piece Folder Gluer
Fully automatic gluing and folding machine for two-piece boxes
Two-Piece Folder Gluer
Fully automatic gluing and folding machine for two-piece boxes
Designed for the efficient gluing and folding of two-piece corrugated boxes, the two-piece folder gluer significantly enhances productivity and product quality by combining automation with easy operation. It requires only two operators, one at the front for feeding the paper and counting glued boxes, and another at the back for folding the boards and feeding them into the pressing unit.
Specifications
- Max. sheet size (L×H): 1000×720mm
- Min. sheet size (L×H): 450×320mm
- Total power: 6kW
- Machine dimensions (L×W×H): 3570×3100×1200mm
- Machine weight: 3.5T
Features
- The feeding unit accommodates two stacks of corrugated boards, allowing the processing of two pieces (AB sheets) simultaneously, improving production efficiency
- Utilizes hot melt adhesive in the middle section for precise and strong bonding, with four-sided guiding rails ensuring accurate positioning and high precision during the gluing process
- Manual folding section effectively addresses issues with die-cut creases and corrugated alignment, ensuring precise control over the box's adhesive flap size and resulting in well-formed boxes
