Mill Roll Stand
Roll handling equipment used in corrugated cardboard production line

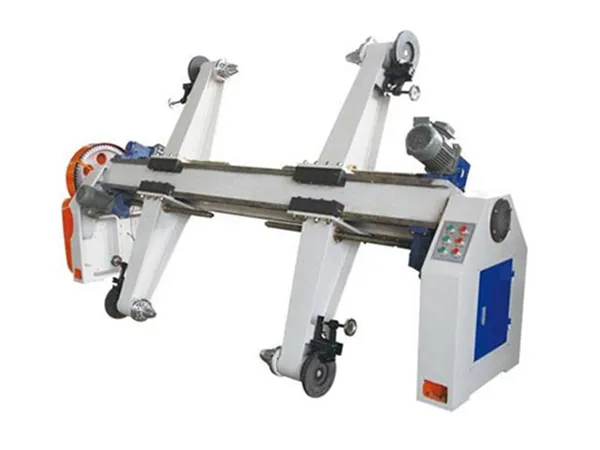

Electrical Shaftless Mill Roll Stand
- Paper roll diameter: ⌀1500mm
- Paper roll width: 600-1600mm, 600-1800mm
Features
- Uses both manual and pneumatic brakes for accurate paper roll tension adjustment.
- Equipped with a cycloid motor for smooth clamping and lifting, preventing damage from overloading or contact with the ground.
Hydraulic Shaftless Mill Roll Stand
- Paper roll width: 1800mm
- Max. paper roll diameter: ⌀1500
- Min. paper roll diameter: ⌀400mm
- Loading capacity at each side: 2000-2500kg
- Main motor power: 2kW
- Clamping arm power: 1.5kW×4
Features
- The symmetrical design supports the installation and continuous change of two paper rolls at the same time
- Hydraulic cylinders enable smooth horizontal movement, clamping, and lifting, ensuring precise control
- Each stand comes with two sets of rails and trolleys for easy transport of paper rolls
- The pneumatic brake system provides accurate tension control
