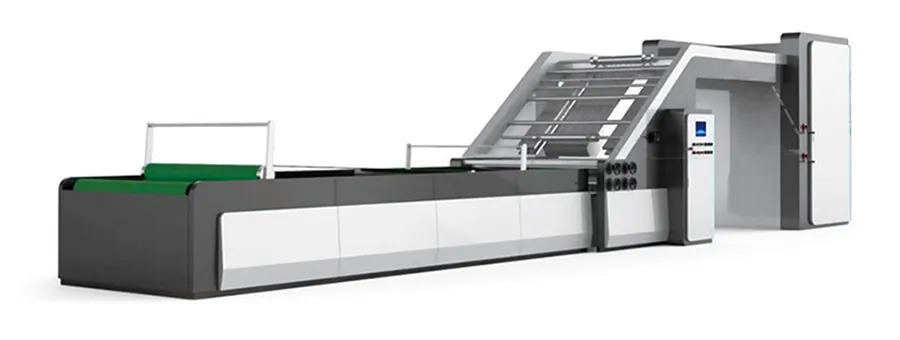

Automatic Flute Laminator
Laminating machine for cardboard and corrugated paper
Specifications
Model | |||
Max. size of top paper (mm) | 1300×1100 | 1450×1100 | 1600×1100 |
Min. size of top paper (mm) | 400×400 | 400×400 | 400×400 |
Economic speed (piece/min) | 0-120 | 0-120 | 0-120 |
Lamination precision (mm) | ±1.5 | ±1.5 | ±1.5 |
Power (kW) | 10 | 11 | 12 |
Features
- This laminator uses a vacuum suction feed system to precisely align each sheet before lamination. This ensures a smooth process even during high-speed operations, greatly reducing the chance of misfeeds or jams
- A high-precision front gauge positioning system ensures that the base sheets are always correctly aligned under the top sheets, maintaining uniformity and quality across all produced materials
- The flute lamination process is enhanced with a user-friendly touchscreen interface alongside a PLC (Programmable Logic Controller) system, augmented by servo motor technology. This setup not only simplifies adjustments but also provides real-time diagnostics to prevent downtime
- The automatic gluing system applies a consistent layer of adhesive, which is necessary for strong bonds. It also recycles excess glue, reducing waste and saving costs
- Designed to prevent glue splatter at high speeds, the rollers maintain a clean work environment and ensure glue is applied evenly
- Its laminating rollers can be easily adjusted from one side to accommodate various material thicknesses, ensuring flexibility across different production needs
- Helps track the quantity of finished products, facilitating easy monitoring of daily outputs and enhancing workflow efficiency
