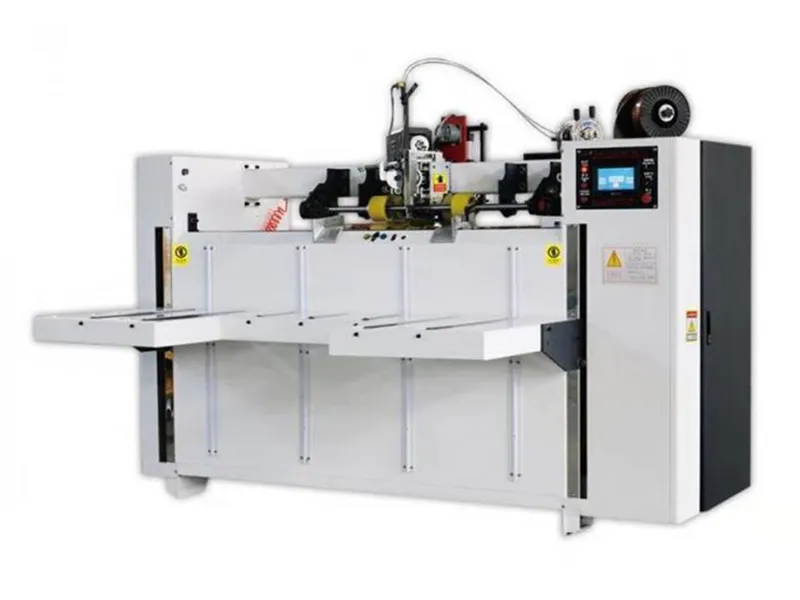

Semi-Automatic Carton Stitcher
Corrugated carton box stitching machine for one-piece boxes
Semi-Automatic Carton Stitcher
Corrugated carton box stitching machine for one-piece boxes

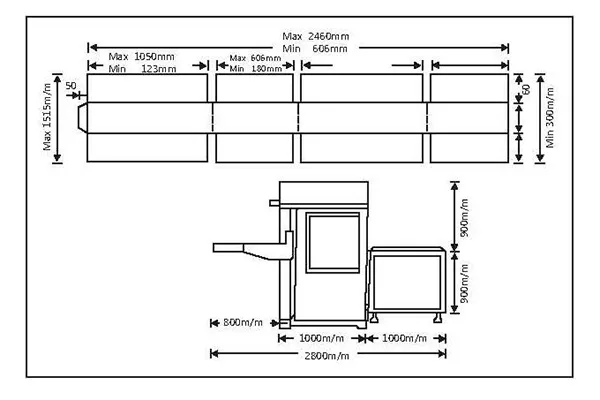

Specifications
- Max. (Length + Width)×2: 2460mm
- Min. (Length + Width)×2: 606mm
- Max. (Width + Height)×2: 1515mm
- Min. (Width + Height)×2: 400mm
- Hight of feeder: 900mm
- Power: 6HP
- Stitching pitch: 30-60mm
- Number of stitches: 1-99
- Machine speed: 500 stitches/min
- Machine length: 2800mm
- Machine width: 2600mm
- Machine weight: 2000kg
Features
- Fitted with a dual servo drive system from Yaskawa, Japan, ensuring high accuracy and reducing mechanical faults
- A user-friendly Weinview touchscreen allows for simple adjustments of parameters like stitch distance, stitch count, and stitch type
- The entire control system is managed by an Omron PLC, ensuring smooth and efficient operations
- The servo motor-driven rear stopper allows for precise adjustments directly from the touchscreen, enhancing ease of use
- The lower mold and blades are made from high-quality tungsten steel, ensuring durability and long-term use
- Made from special steel and precision-engineered, the stitching head can handle various stitching requirements
- Thanks to its innovative design, the stitcher can perform single, double, or reinforced stitching, catering to different box designs and customer needs
- Adjusting the box size and stitches can be done in just a minute, saving time and boosting productivity
- Suitable for stitching both lidless and lidded boxes, offering versatility in production
- Equipped with an automatic counting system and a photoelectric sensor on the feeding platform, it ensures precise counting and efficient output management
- Capable of automatically counting finished boxes and delivering them for easy bundling and packaging, improving workflow and reducing manual labor
