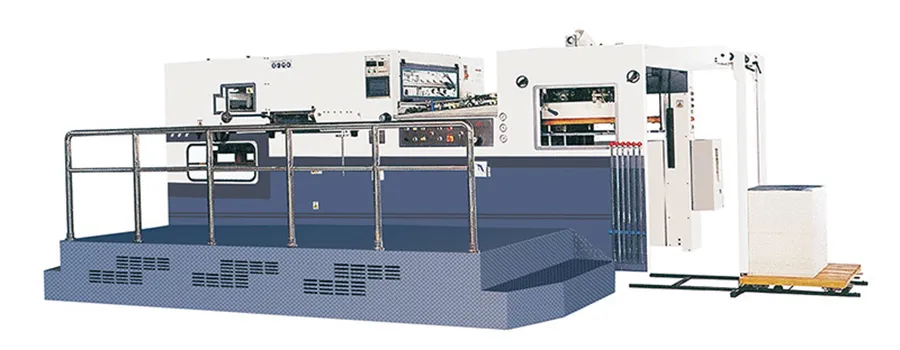

Automatic Flatbed Die Cutting and Creasing Machine
Automatic flatbed die cutter with stripping station for corrugated boards
Our automatic flatbed die cutter equipped with stripping function is designed to enhance packaging production by combining precision cutting and automated waste removal. This die cutting equipment is ideal for processing corrugated boards, ensuring that all unwanted scrap and waste materials are efficiently removed during the die-cutting process. Its ability to handle continuous feeding and output makes it a highly efficient and automated solution, boosting production speed and reducing downtime.
Specifications
| Model | |||
| Max. sheet size (mm) | 1080×780 | 1100×780 | 1200×780 |
| Min. sheet size (mm) | 400×370 | 400×370 | 400×370 |
| Max. cutting size (mm) | 1070×760 | 1090×770 | 1185×770 |
| Min. cutting size (mm) | 320 | 320 | 320 |
| Paper thickness (mm) | Cardboard 0.1-3 Corrugated paper ≤4 | Cardboard 0.1-2 Corrugated paper ≤5 | Cardboard 0.1-1.5 Corrugated paper ≤5 |
| Max. speed (sheets/h) | 7500 | 7000 | 7000 |
| Max. height of paper stack (mm) | 1100 | 1100 | 1100 |
| Total power (kW) | 16.95 | 17 | 17.5 |
| Weight (T) | 17.5 | 17.8 | 18 |
