    Description

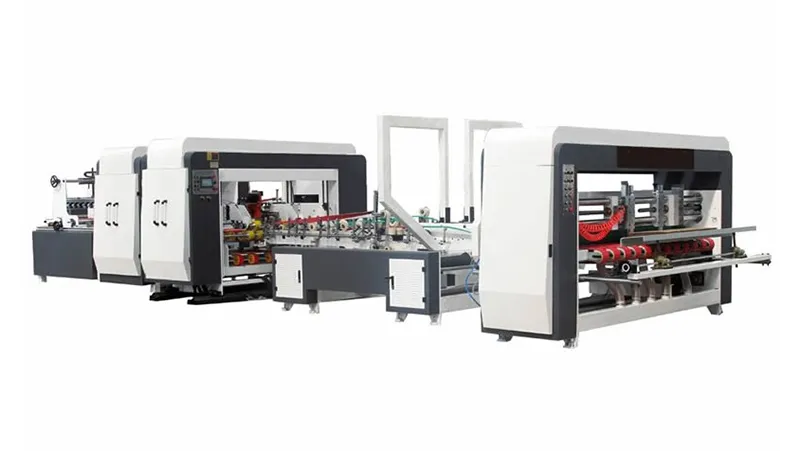

    The automatic folder gluer stitcher simplifies the production of cardboard boxes by combining feeding, folding, gluing, stitching, and alignment correction into one efficient process. This carton converting machine is designed for high productivity, with stitching speeds averaging 80 meters per minute for 40-70 boxes and gluing speeds reaching 170 meters per minute for 100-300 boxes.

    Specifications
    Max. cardboard length (A+B) ×2 2400mm
    Min. cardboard length (A+B) ×2 680mm
    Min. cardboard width (C+D+C) 260mm
    Max. box length A 750mm
    Min. box length A 170mm
    Max. box width B 450mm
    Min. box width B 150mm
    Max. box height D 700mm
    Min. box height D 150mm
    Max. flap size C 400mm
    Min. flap size C 100mm
    Max. stitch flap width E 35mm
    Max. feeding height 1200mm
    Stitching speed 800 stitches/min
    Number of stitches 1-99
    Machine dimensions (L×W×H) 1400×3500×1700mm
    Machine weight 6T
    Configurations
    • Feeding Unit
      Uses a vacuum suction belt lead edge feeder for accurate and reliable paper feeding
      Equipped with high-end electromagnetic clutch and brake systems, allowing independent control of the feeding section for ease of operation
      Features adjustable front baffle and belt for versatile paper handling
      The main motor uses variable frequency speed control, ensuring quiet, stable, and convenient operation
    • Folding & Gluing Unit
      Uses stainless steel wheels for glue application, ensuring even distribution without failures and saving on glue usage
      The folding section employs wear-resistant special material belts for precise automatic folding of cardboard
      High-quality stainless steel glue rollers ensure even glue application and efficiency

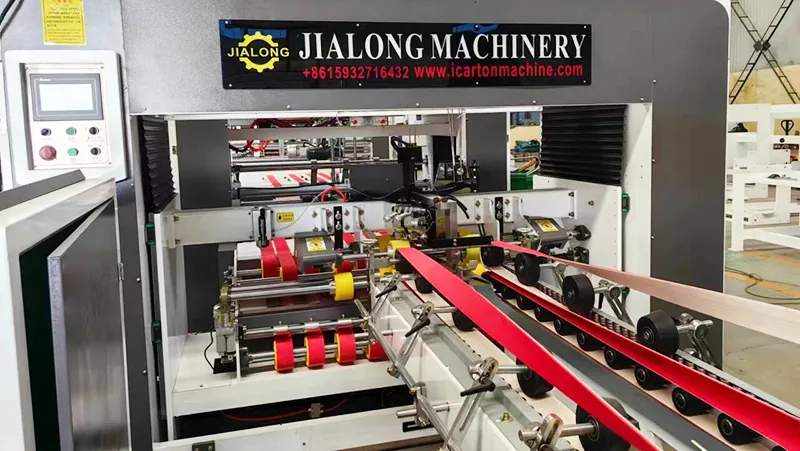

    • Stitching Unit
      Features a Taiwan Weinview touchscreen for easy parameter adjustments, including stitches distance, count, type, and backstop settings
      The stitching head is made from special mold steel, processed with precision CNC machining
      Supports single, double, and reinforced stitching options to meet various customer requirements
      Quick adjustments for box size and stitching distance can be made in just one minute, enhancing operational efficiency
    • Pasting Unit
      Automatic glue supply with a recycling system ensures continuous glue application without manual intervention, saving time and effort
      Stainless steel glue wheels are resistant to corrosion and wear, providing even glue application and significant glue savings compared to manual application
    • Counting & Stacking Unit
      Digital control for simple operation and reliable performance, allowing data input without stopping the folding gluing machine
      Uses belts for fast and tidy stacking of boxes, with an adjustable correction function for precise alignment
      Ensures accurate counting and organized stacking, improving workflow and reducing manual labor
