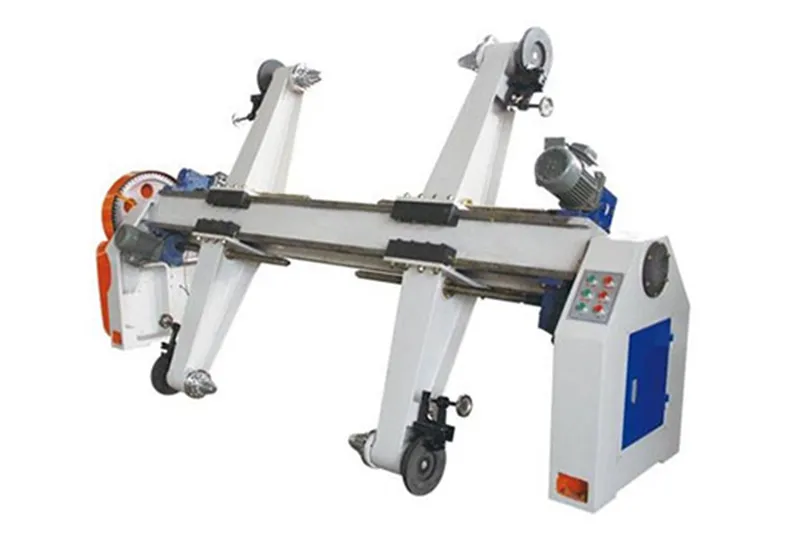

• Paper roll diameter: ⌀1500mm
• Paper roll width: 600-1600mm, 600-1800mm

Features

• Uses both manual and pneumatic brakes for accurate paper roll tension adjustment.
• Equipped with a cycloid motor for smooth clamping and lifting, preventing damage from overloading or contact with the ground.

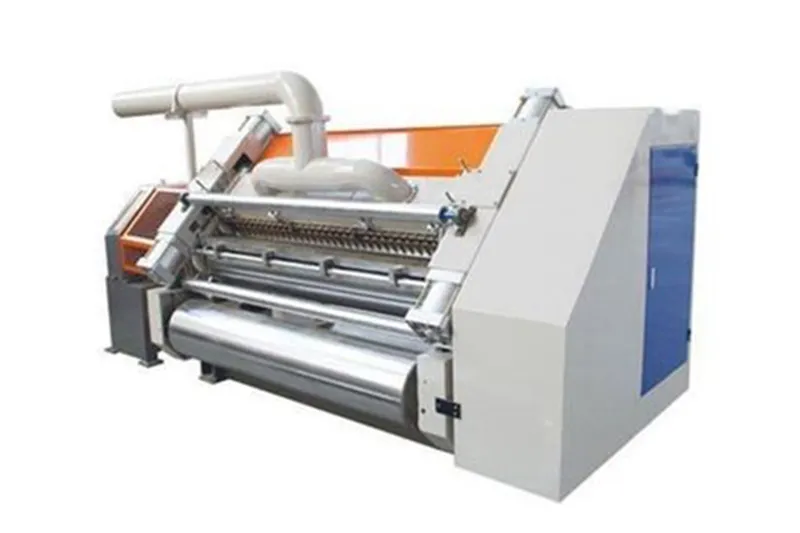

Single-faced corrugated cardboard is a versatile material primarily used in the packaging industry. It consists of one layer of corrugated flutes attached to one flat sheet of linerboard.

Features

• The drive gearbox uses oil-immersed lubrication to reduce noise and ensure smooth operation, driven by a universal joint
• Corrugating, pressure, and glue rollers are adjusted pneumatically for precise control

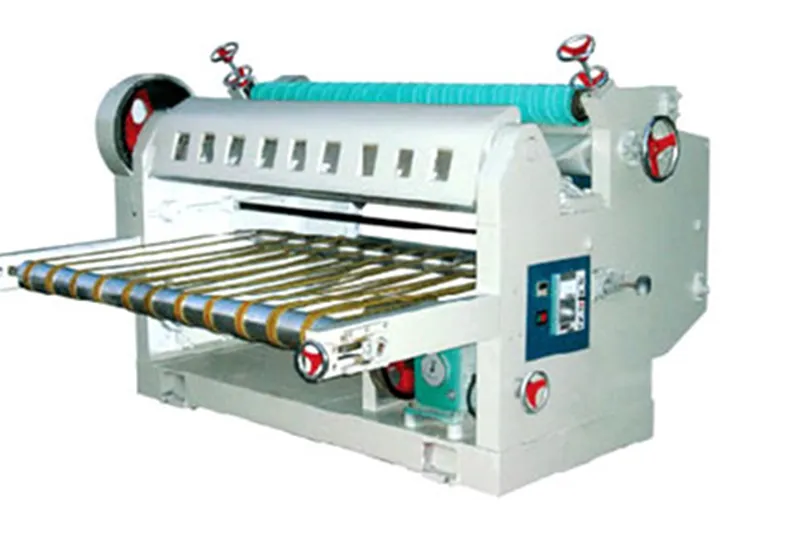

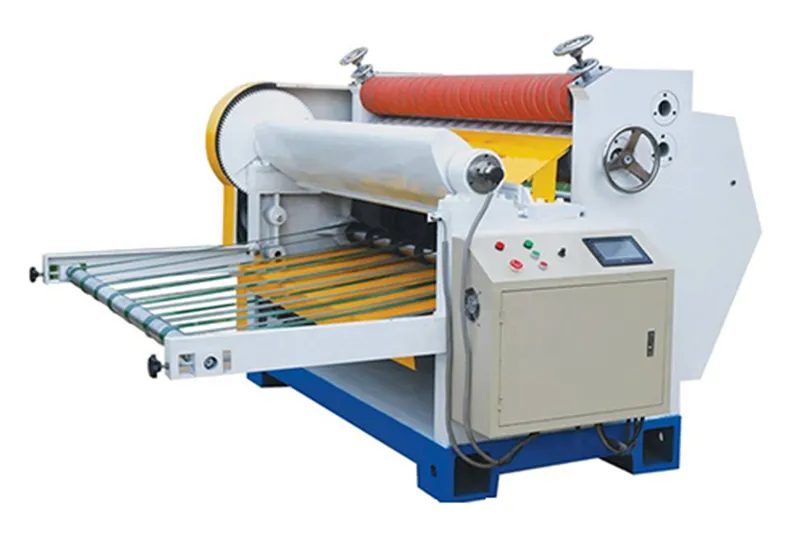

Features

• Cutting width: 1200mm/1400mm/1600mm/1800mm/2000mm
• Cutting length: 390-2400mm
• Cutting thickness: 2mm
• Machine speed: 0-70m/min
• Dimesions: 2100×2100×1450mm
• Cutting precision: ±3mm

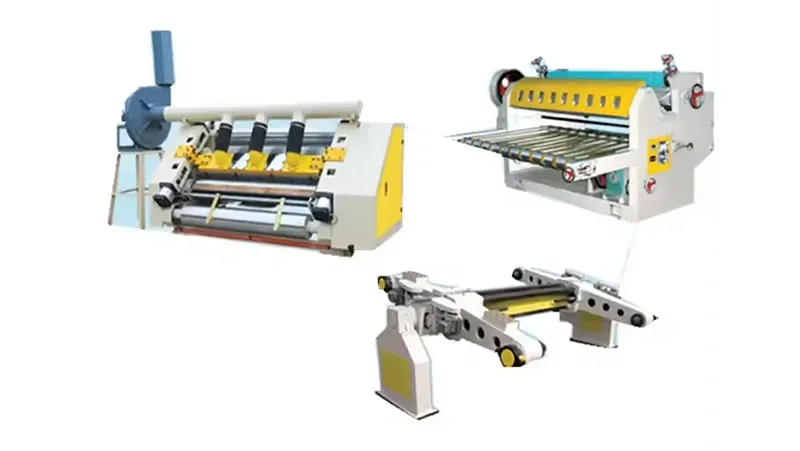

Designed to handle the production of single-face corrugated cardboard (also called 2 ply corrugated cardboard), this corrugated cardboard manufacturing line is an important tool for modern carton manufacturing. It supports both longitudinal and transverse cutting, making it ideal for high-end printing machines. The corrugated cardboard processing system is tailored for quick order changes, high cutting accuracy, and fast operational speed, ensuring minimal waste during transitions.
