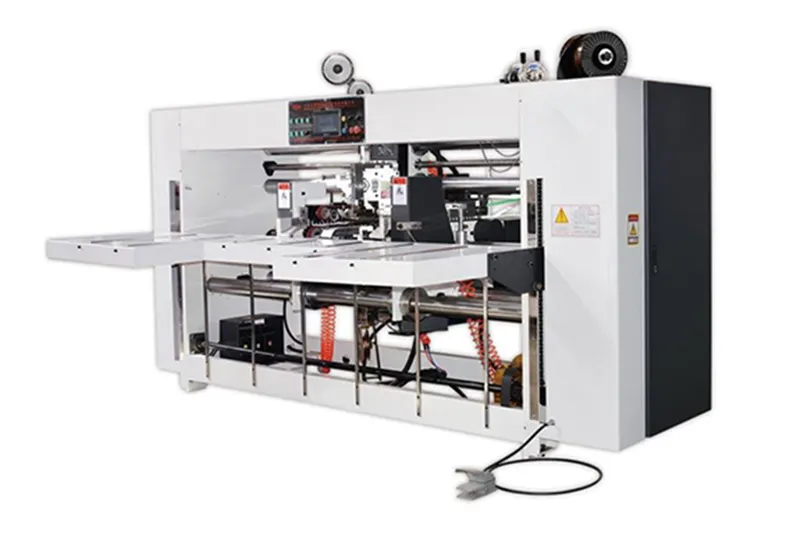

Semi-Automatic 2-Piece Carton Stitcher
Corrugated carton box stitching machine for one-piece / two-piece boxes
Semi-Automatic 2-Piece Carton Stitcher
Corrugated carton box stitching machine for one-piece / two-piece boxes
Ideal for large packaging needs, the semi-automatic 2-piece carton stitcher is designed to handle big corrugated boxes, like those used for refrigerators and air conditioners. This stitching machine can efficiently join two pieces of cardboard into a single box, providing versatility for various packaging applications.
Specifications
| Model | |||
| Max. cardboard length (A+B)×2 | 4000mm | 4800mm | 6000mm |
| Min. cardboard length (A+B)×2 | 1060mm | 1060mm | 1060mm |
| Max.box length A | 1850mm | 2350mm | 2850mm |
| Min. box length A | 350mm | 350mm | 350mm |
| Max. box width B | 1000mm | 1200mm | 1500mm |
| Min. box width B | 180mm | 180mm | 180mm |
| Max. cardboard width (C+D+C) | 2500mm | 2500mm | 2500mm |
| Min. cardboard width (C+D+C) | 400mm | 400mm | 400mm |
| Max. flap size C | 560mm | 560mm | 560mm |
| Min. flap size C | 50mm | 50mm | 50mm |
| Max. box height D | 2000mm | 2000mm | 2000mm |
| Min. box height D | 150mm | 150mm | 150mm |
| Max. stitch flap width | 45mm | 45mm | 45mm |
| Stitching pitch | 30-120mm | 30-120mm | 30-120mm |
| Number of stitches | 1-99 | 1-99 | 1-99 |
| Stitching speed | 500 stitches/min | 500 stitches/min | 500 stitches/min |
| Machine weight | 3T | 3.5T | 4T |
Features
- Equipped with Delta servo motors, the stitcher ensures high precision and reduces mechanical parts, minimizing the risk of faults.
- The base mold and blades are made from high-quality tungsten steel from Japan, known for their durability and wear resistance.
- The stitching head is crafted from special tungsten steel and precision machined using CNC technology.
- Box size and stitching distance adjustments are quick, taking just one minute to complete, which saves time and boosts productivity
- Suitable for three to five-layer medium and small-sized printed boxes, as well as lidless and lidded boxes. Special configurations are available for seven-layer boxes
- Features an automatic counting system that delivers finished boxes in preset quantities (1-99) to the conveyor's end for easy packaging and bundling
- Offers options for single, doble, or reinforced stitching to meet different packaging requirements
- The touchscreen interface allows easy setting of stitching distance, making the stitcher convenient to operate
