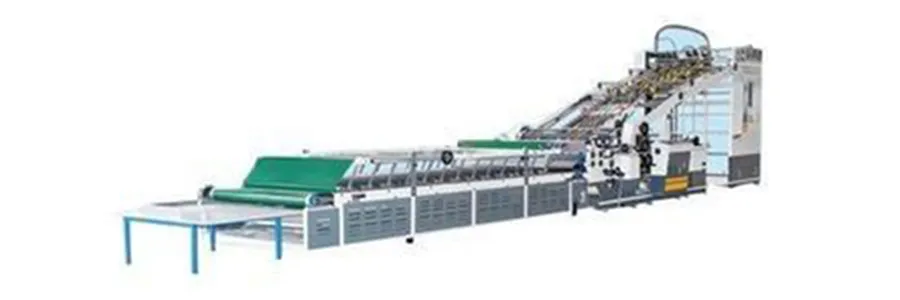

Automatic High Speed Flute Laminating Machine (100pc/min)
Sheet to sheet cardboard laminator for bonding printed paper sheet to corrugated board
Designed to meet the demands of high-throughput production environments, the automatic high speed flute laminating machine featured an impressive capability, processing up to 100 pieces per minute. This cardboard laminator excels in attaching printed paper sheets to corrugated boards, which is crucial for manufacturing high-precision, flat packaging for colorful boxes and cartons. With its ability to work with A, B, C, D, E, and F flute corrugated sheets, it supports a variety of lamination configurations, including 3-ply and 5-ply setups, for both paper-to-board and board-to-board applications.
Specifications
| Model | |||||||
| Max. Paper Size (W×L) (mm) | 1100×1100 | 1300×1100 | 1300×1300 | 1450×1100 | 1450×1300 | 1600×1450 | |
| Mini. Paper Size (W×L) (mm) | 350×350 | 350×350 | 350×350 | 350×350 | 350×350 | 350×350 | |
| Bottom paper | Min. weight (g/m²) | 300 | 300 | 300 | 300 | 300 | 300 |
| Max. weight (g/m²) | 800 | 800 | 800 | 800 | 800 | 800 | |
| Max. thickness (mm) | 10 | 10 | 10 | 10 | 10 | 10 | |
| Top paper | Min. weight (g/m²) | 180 | 180 | 180 | 180 | 180 | 180 |
| Max. weight (g/m²) | 800 | 800 | 800 | 800 | 800 | 800 | |
| Lamination precision (paperboard to paperboard) (mm) | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | |
| Lamination precision (paperboard- corrugated board) (mm) | ±1.5 | ±1.5 | ±1.5 | ±1.5 | ±1.5 | ±1.5 | |
| Total power (kW) | 12 | 12 | 13 | 13 | 13 | 13 | |
| Speed (piece/min) | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 | |
| Machine length (m) | 12.5 | 12.5 | 14.8 | 12.5 | 14.8 | 15.1 | |
| Machine weight (kg) | 5300 | 5600 | 5900 | 5900 | 6200 | 6500 | |
Features
- The semi-automatic flute laminator features an advanced paper feeding system that includes a chain feeder and precise registration controls. Coupled with a vacuum suction conveyor and spring-loaded side guides, the system ensures wide paper compatibility and precise positioning, enhancing operational ease and maintenance
- This laminator utilizes a sophisticated gluing system that combines anilox rollers with rubber application rollers. This setup not only spreads glue more evenly but also strengthens adhesive bonds while reducing material costs.
- To curb waste and enhance sustainability, the laminator integrates an automatic glue supply with a recovery system that recycles excess adhesive, promoting efficient use of materials
- Designed to manage a diverse range of paper weights (200-600 GSM), the face paper conveyor system includes functionalities for both advancing and aligning sheets, ensuring seamless lamination for various paper types
- The laminator is built with components that meet ISO-9001 standards, including high-quality harmonic gears and bearings from leading international suppliers, ensuring durability and reliability
