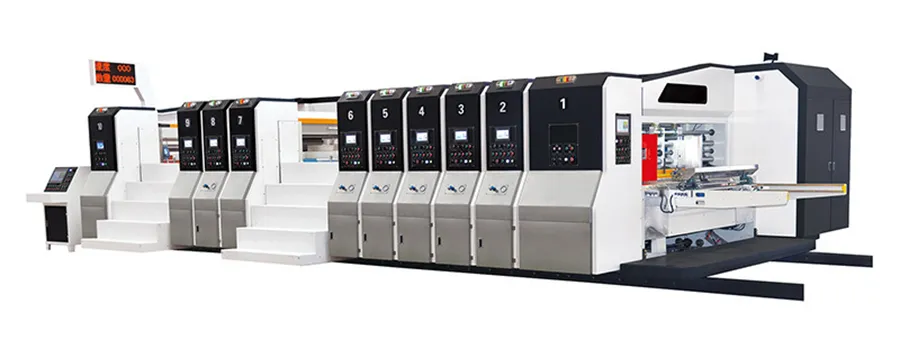

Automatic Flexo Printer Slotter Die Cutter with Vacuum Transfer
Corrugated cardboard converting machine combining printing, die-cutting, stripping and stacking
Description
Our carton converting equipment ensures a smooth production process, managing everything from feeding, dust removal, and printing to infrared drying, varnishing, UV drying, die-cutting, waste removal, and stacking.
With a speed of 180 to 200 sheets per minute, it guarantees efficiency and high-quality output.
Features
- The anilox roll lifting system ensures superior print results
- Equipped with Schneider Electric components from France and Siemens fans, PLC, and touch screens from Germany
- Features a patented system for automatic paper feeding width adjustment and a secure print lock mechanism
- Offers the convenience of remote monitoring and service from our office in China
Specifications
| Model | |||||
| Max. machine speed (sheets/min) | 200 | 200 | 200 | 180 | 180 |
| Economic printing speed (sheets/min) | 160 | 160 | 160 | 150 | 150 |
| Max. sheet size (mm) | 950×2000 | 950×2200 | 950×2400 | 1300×2400 | 1300×2600 |
| Min. sheet size (mm) | 260×500 | 260×500 | 260×500 | 350×800 | 350×800 |
| Min. space of slotting (obverse knife) (mm) | 140×140×140×140 | 150×150×150×150 | |||
| Min. space of slotting (reverse knife) (mm) | 260×60×260×60 | 280×60×280×60 | |||
| Max. depth of slot (mm) | 240 | 240 | 240 | 300 | 300 |
| Sheet size with skip feeding (mm) | 1200×2000 | 1200×2200 | 1200×2400 | 1500×2400 | 1500×2600 |
| Max. printing size (mm) | 950×1800 | 950×2000 | 950×2200 | 1300×2200 | 1300×2400 |
| Standard printing plate thickness (mm) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
