Stacker Machine
Automatic stacking system used in corrugated board production line

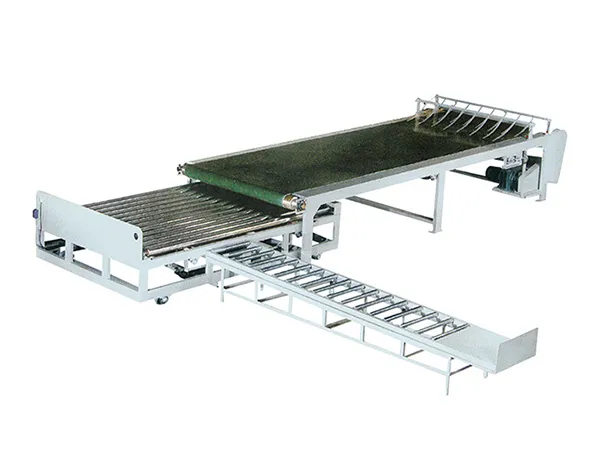

Right Angle Stacker
- Max. stack length: 3000mm
- Max. stack height: 200mm
- Main motor: 3kW variable frequency motor
Features
- Automatically stacks corrugated boards according to preset quantities and layers, ensuring uniform stacks that are easy to handle and store
- Features a right-angle output mechanism that maintains the stacks at a 90-degree angle, improving the efficiency of subsequent transport and handling processes
- Integrates seamlessly with other equipment in the production line, ensuring continuous operation and higher levels of automation
- Automatically adjusts stacking parameters to accommodate different board sizes and stacking requirements, enhancing its versatility
Fully Automatic Gantry Stacker
- Stacking speed: 200m/min
- Effective width: 1800-2500mm
- Stack height: 250mm
- Stack length: 3500mm
Features
- Utilizes a variable frequency motor to synchronize the conveyor speed with the speed of the boards, ensuring smooth and efficient operation
- Features an automatic counting system and vacuum suction for precise stack changeover and neat stacking, reducing manual intervention
- Its gantry stacking system with AC servo control ensures stable and uniform stacking, protecting the boards from damage
- Equipped with aluminum alloy roll paper stands to protect board edges and facilitate flipping, packing, and stacking
- Includes an independent sealed control cabinet with industrial air conditioning, maintaining a clean, temperature-controlled environment for electrical components
- Features an 8-inch color touchscreen for easy operation and real-time monitoring
- Standard communication interfaces allow for connection to a central monitoring and management system, enabling automatic order changes and efficient order management
- Fully automatic operation improves overall efficiency, saves labor, and reduces the workload for operators
