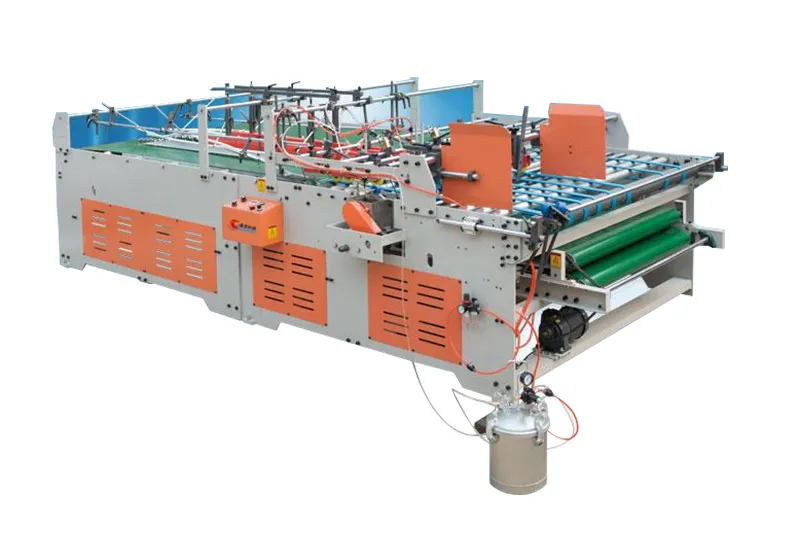

Semi-Automatic Folder Gluer for Lock Bottom Box
Carton gluing and folding machine with press conveyor
Semi-Automatic Folder Gluer for Lock Bottom Box
Carton gluing and folding machine with press conveyor
Designed for small to medium-sized orders, the semi-automatic folder gluer for lock bottom box streamlines the production process of various carton types. This carton converting machine is perfect for businesses that need to frequently switch between different box styles, including standard, special-shaped, and laminated boxes. Its compact size and ease of use make it accessible for operators without extensive experience.
Specifications
Model | |||
Max. sheet size (mm) | 1100×800mm | 1500×800mm | 1800×800mm |
Min. sheet size | 450×300mm | 450×300mm | 450×300mm |
Power | 0.8kW | 0.8kW | 0.8kW |
Speed | 40m/min | 40m/min | 40m/min |
Dimensions | 4500×2100×1500mm | 4500×2500×1500mm | 4500×2800×1500mm |
Features
- Uses only one-third of the glue compared to manual application, ensuring strong adhesion and clean results without excessive glue usage.
- It operates at a maximum speed of 40 meters per minute, which is 3-4 times more efficient than manual operations, significantly boosting productivity.
- Equipped with a patented polishing system that removes UV coatings or plastic layers from the adhesive area, this feature enhances glue adhesion and solves the problem of boxes coming apart.
- The manual folding section increases efficiency and is suitable for handling products with poor creasing, special shapes, or windowed surfaces.
- Includes a digital counter that simplifies and speeds up the counting process, improving overall production efficiency.
- The gluing section is made with high-quality stainless steel for the glue trough and main parts, making them resistant to corrosion and durable for long-term use. The high-strength conveyor belt presses and transports the glued boxes without causing damage, ensuring the final product maintains its quality.
