Slotter Machine

Slotting machines are key tools for creating precise slots in materials including cardboard and paperboard, which is crucial for making strong, visually appealing boxes. These slotters are widely used in various sectors such as packaging, printing, shoemaking, and electronics, helping to improve the quality of production and make manufacturing processes smoother. Cardboard slotters are particularly important for producing high-quality packaging. They ensure that slots are precisely cut, which is essential for the structural integrity and aesthetic quality of the final product. This accuracy is crucial in industries where packaging quality and durability are directly linked to product safety and customer satisfaction.

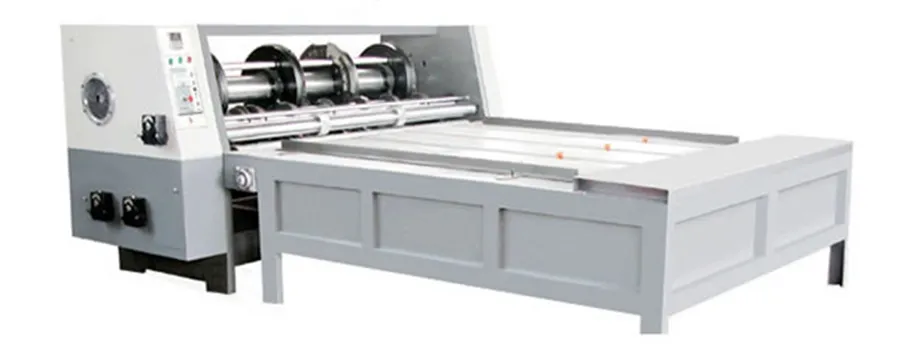

Corrugated Paperboard Rotary Slotting Machine
Corrugated Paperboard Rotary Slotting Machine
Request a Quote
Main Mechanism Performance
  • A semi-automatic chain feeder and fixed side guides maintain stable corrugated board feeding and positioning.
  • Slitting, creasing, slotting, and corner cutting are completed in a single pass.
  • A dual-worm mechanism provides 360° phase adjustment.
  • Carton height can be adjusted synchronously for faster size setup.
  • Helical gears with oil-bath lubrication provide smooth and reliable transmission.
Optional Configurations
  • Motorized planetary transmission for phase adjustment.
  • Synchronized adjustment of the slotting knife holders and creasing wheels.
  • Hole-punching and hand-hole attachments.
Specifications
Model Blade diameter (mm) Sheet size (mm) (l*w) Max. slot thickness (mm) Slot width (mm) Slotting speed (sheets/min)
YQ-2000 400 1200×2000 300 7 0-70
YQ-2200 1200×2200 300 7 0-70
YQ-2400 1200×2400 300 7 0-70
YQ-2600 1200×2600 300 7 0-70
YQ-2000 480 1450×2000 350 7 0-70
YQ-2200 1450×2200 350 7 0-70
YQ-2400 1450×2400 350 7 0-70
YQ-2600 1450×2600 350 7 0-70

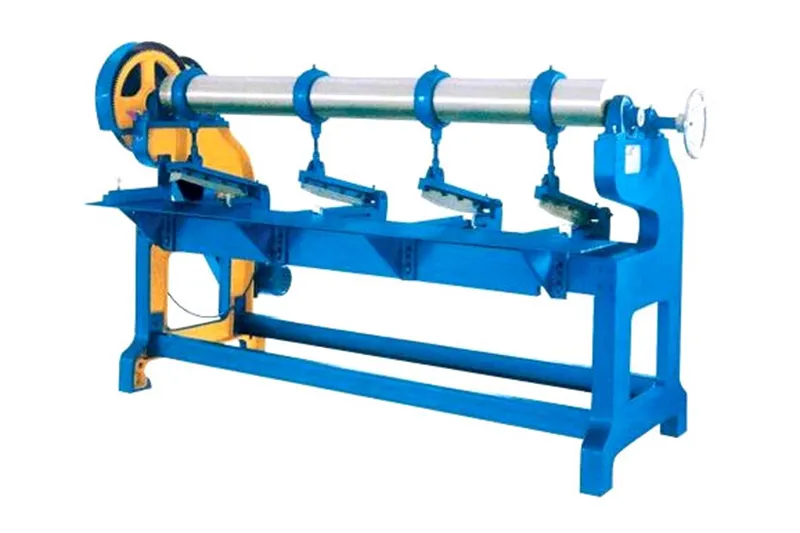

Four-Knives Slotter Machine
Request a Quote
Four-Knives Slotter Machine
  • Sawtooth slotting blades reduce cutting resistance and provide durable cutting performance.
  • The four-knife slotter is suitable for producing single-wall, double-wall, and multi-wall corrugated cartons.
  • A compact structure allows convenient adjustment and straightforward operation.
  • Working width: 2500mm
  • Knife length: 430mm
  • Max. slotting size (W×D) : 7×350mm
  • Max. corner cutting size (W×D): 60×350mm
  • Working speed: 50sheets/min
  • Power: 1.5kW
  • Weight: 1.8T
  • Dimensions: 3000×1200×1500mm

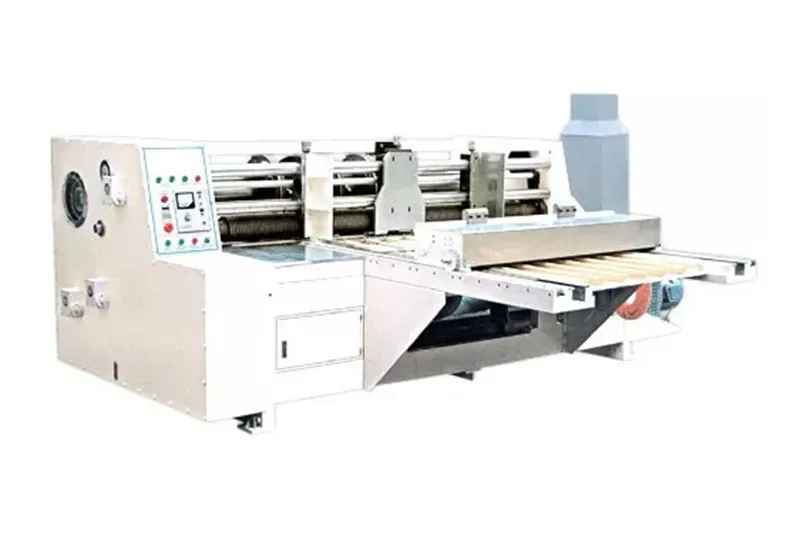

Automatic Rotary Slotting Machine
Request a Quote
Automatic Rotary Slotting Machine
  • Max. working speed: 100sheets/min
  • Max. sheet size: 1200× 2000/2200/2400/2600mm
  • Min. sheet size: 300×650mm
  • Slot width: 7mm
