Paper Edge Protector & Corner Protector Machine
Production lines for cardboard edge protectors
Producing high-quality cardboard edge protectors is made efficient with a machine that integrates advanced processes such as paper feeding, gluing, forming, cutting, and automatic stacking. These protectors are essential for reinforcing packaging edges, preventing damage during transportation and handling. With a streamlined production flow, the paper edge protector manufacturing machine enhances efficiency and precision, making it an invaluable asset for any packaging operation.

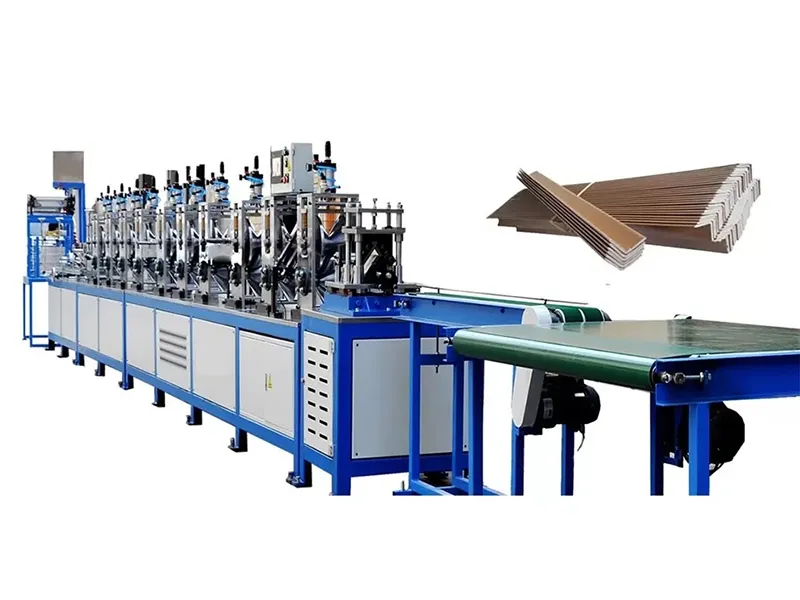

Paper Edge Protector Production Line
Specifications
| Model | | |
| Supported edge protector types | L-shaped edge protectors | L-shaped edge protectors, U-shaped paper channels, and flat board |
| Edge protector size per side (mm) | 20-100 | L: 20-100 U: 20-70 Flat board: 40-150 |
| Max. speed (m/min) | 50 | 30 |
| Standard production speed (m/min) | 20-40 | 15-25 |
| Cutting system | Servo-synchronized cutting | |
| Cutting drive | Servo motor and cam drive | |
| Cutting accuracy (mm) | ±1 | |
| Max. number of paper layers | 12 | |
| Glue supply system | Imported diaphragm pump with automatic glue feeding and recycling | |
| Dimensions (L × W × H) (mm) | 22000×1400×2300 | 25000×1400×2300 |
| Gross weight (kg) | 3000 | 3500 |
| Applicable paper | Core layer: 420gsm tube board Facing layer: 180-300gsm kraft paper | |
| Motor power (kW) | 11 | |

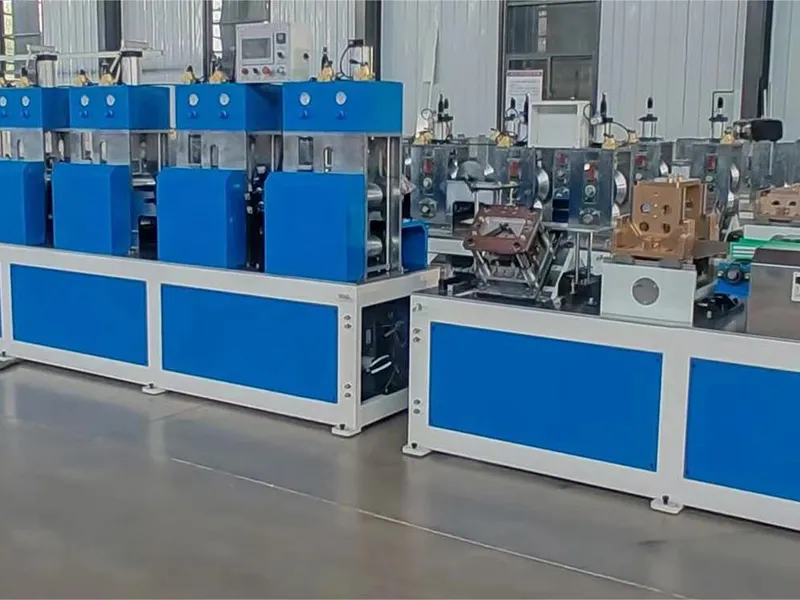

L-Shaped / U-Shaped / Flat Edge Protector Production Line
- Sets of pressing rolls (L-shaped / U-shaped edge protector): 8 sets
- Sets of pressing rolls (flat edge protector): 8 sets
- Max. production speed: 45m/min
- Side width of L-shaped / U-shaped edge protector: 30-100mm
- Thickness of edge protector: 2-5mm
- Width of flat edge protector: 30-220mm
- Paper layers: 3-13
- Motor power: 5.5-7.5kW
Features
- The edge protector production line includes eight sets of V-shaped forming wheels, eight sets of U-shaped forming wheels, and eight sets of flat-board forming wheels. The forming wheels rotate coaxially and feature pneumatic pressure adjustment.
- A frequency inverter, servo motor, touchscreen, PLC, and human–machine interface provide centralized production control and straightforward operation.
- Production specifications can be entered through the touchscreen in batches. The control system monitors production quantities and stops the edge protector line automatically when the preset quantity is reached.
- Automatic alarms and fault prompts help operators identify operating issues and simplify maintenance.
- An optional punching and creasing unit can process V-shaped edge protectors from 30 to 80 mm wide. Available tooling includes 90° punching, 90° buckle punching, and 5–90° wraparound punching.
- The edge protector line adopts a thickened, reinforced channel-steel frame, heat-treated forming wheels, and a 10 mm-thick integrated worktable. Key components are chrome-plated, while the servo flying shear supports stable cutting, consistent accuracy, and extended service life.
