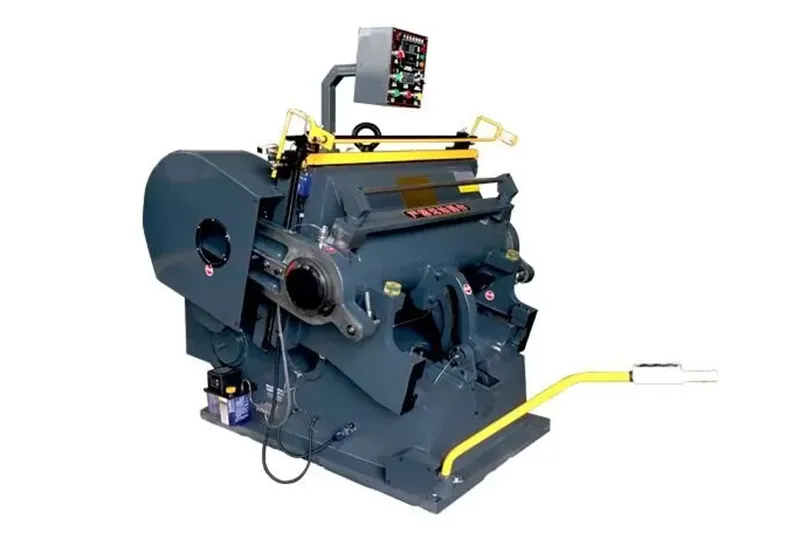

Die Cutting and Creasing Machine

Clamshell die cutter for shaping cardboards,corrugated boards, plastic and leather products

Designed for precision and reliability, the die cutting and creasing machine stands as an indispensable tool in the packaging and manufacturing sectors. This die cutter specializes in accurately shaping materials such as cardboards, corrugated boards, plastics, and leather, meeting the diverse needs of modern production lines. Its capability to execute complex cutting patterns and intricate creases makes it an essential for producing high-quality packaging solutions and decorative elements in various industries. Offering both die-cutting and creasing capabilities, it enhances packaging production processes, significantly reducing time and labor costs while enhancing product quality.

Features

Photoelectric sensing and control systems enhance operational safety.
The die cutting and creasing machine’s bed is precision-machined to support accurate pressing, creasing, and die cutting.
The frame guide surfaces undergo high-frequency heat treatment to improve rigidity and resistance to deformation.
The standard and eccentric bushings are made from solid tin bronze rather than plated materials, ensuring consistent material composition throughout each component.

Specifications

Model	Max. die cutting size (L×W) (mm)	Working speed (pcs/min)	Rule length (m)	Motor power (kW)	Weight (kg)	Overall dimensions (L×W×H) (mm)
ML1800	1800×1300	16±2	< 62	15	13500	2240×2800×2130
ML1600	1600×1250	16±2	< 50	11	11000	2170×2560×2230
ML1500	1500×1050	17±2	< 45	7.5	7500	2010×2400×1930
ML1400	1400×1000	17±2	< 45	7.5	6800	2010×2400×1930
ML1300	1300×920	18±2	< 40	5.5	6000	2000×2140×2000
ML1200	1200×830	18±2	< 35	5.5	4800	1920×2000×1800
ML1100	1100×800	20±2	< 30	5.5	4500	1900×1780×1700
ML930	930×670	23±2	< 25	4.0	3000	1670×1670×1630
