Fully Automatic Carton Stitcher
Corrugated carton box stitching machine combining feeding, folding,stitching, counting and stacking
Fully Automatic Carton Stitcher
Corrugated carton box stitching machine combining feeding, folding,stitching, counting and stacking

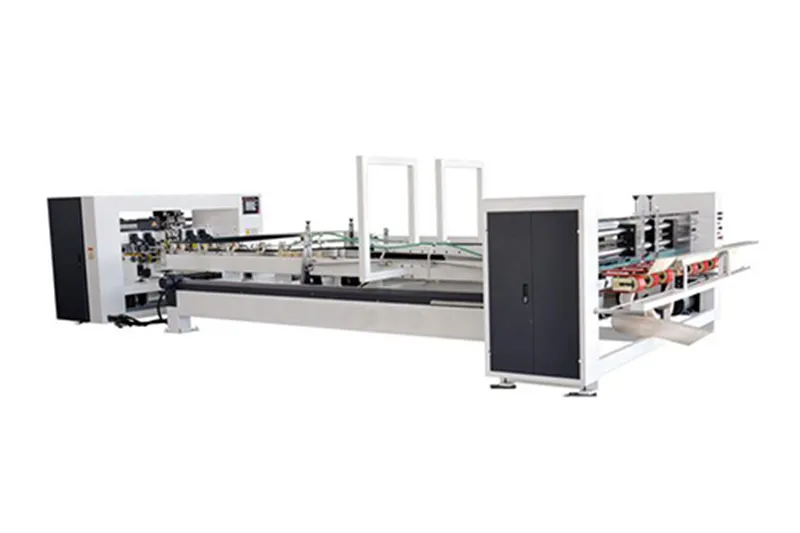

Optimized for high-speed, large-scale production, the fully automatic carton stitcher integrates feeding, folding, stitching, counting, and stacking into one efficient workflow. This cardboard box stitching machine significantly enhances productivity, making it ideal for mass production of corrugated boxes.
Main Machine Configurations
-
Feeding Section
- The lead-edge vacuum belt feeding system provides accurate and reliable corrugated board feeding.
- Fitted with an electromagnetic clutch and brake system, allowing the feeding section to be controlled independently.
- The height of the hold-down wheels can be adjusted to accommodate corrugated board from 2 to 8 mm thick.
- The feeding and folding sections operate in synchronization through variable-frequency control.
- The front guide and feeding belts can be adjusted laterally to suit different carton sizes.
-
Stitching Section
- Dual servo drives provide precise stitching control while reducing the number of mechanical transmission components and the associated risk of mechanical failure.
- Stitching parameters, including stitch spacing, stitch count, stitching mode, and rear-guide position, can be set conveniently through the touchscreen.
- The control system uses an OMRON PLC for coordinated machine operation.
- The control cabinet is fitted with Taiwan Shihlin switches.
- The lower anvil and cutting knives are made from wear-resistant German tungsten steel.
- The stitching head is made from specially selected steel and precision-machined for reliable operation.
- The operating switches and push buttons are supplied by Taiwan Tiande.
- Job changeover can be completed in approximately one minute. The machine supports single, double, and reinforced stitching modes and is designed for straightforward operation with minimal training.
- An automatic counter records production quantities and helps streamline the subsequent strapping process.
- Stitch spacing can be set from 30 to 100 mm and is displayed and adjusted through the touchscreen. The machine can stitch cartons with or without covers.
- The system automatically adjusts to the thickness of the corrugated board.
Specifications
| Max. length (A + B) × 2 | 2200 mm | 2400 mm |
| Min. length (A + B) × 2 | 740 mm | 740 mm |
| Max. width (C + D + C) | 800 mm | 960 mm |
| Min. width (C + D + C) | 350 mm | 350 mm |
| Feeder height | 700 mm | 700 mm |
| Power | 6 HP | 6 HP |
| Machine length | 8000 mm | 9000 mm |
| Machine width | 3500 mm | 3700 mm |
| Machine weight | 3500 kg | 3800 kg |
| Production speed | 45 cartons/min | 45 cartons/min |
| Stitch spacing | 30-100 mm | 30-100 mm |
| Number of stitches | 1-99 stitches | 1-99 stitches |
