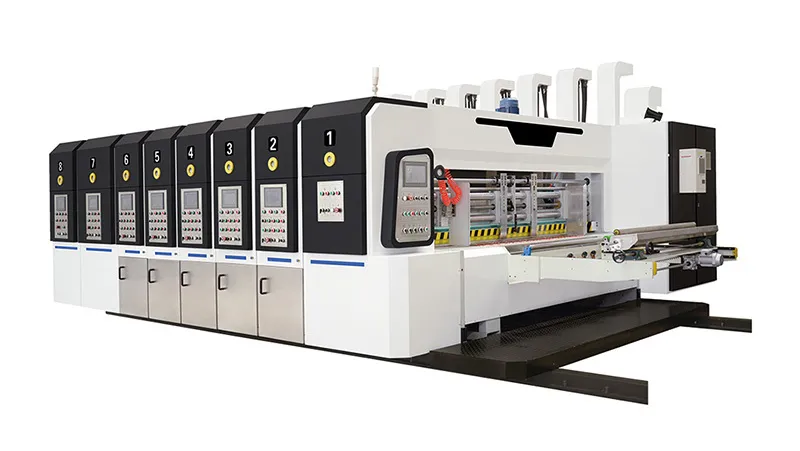

Automatic High Speed Flexo Printer Slotter Die Cutter Stacker

Corrugated cardboard converting machine combining printing, slotting, die-cutting and stacking

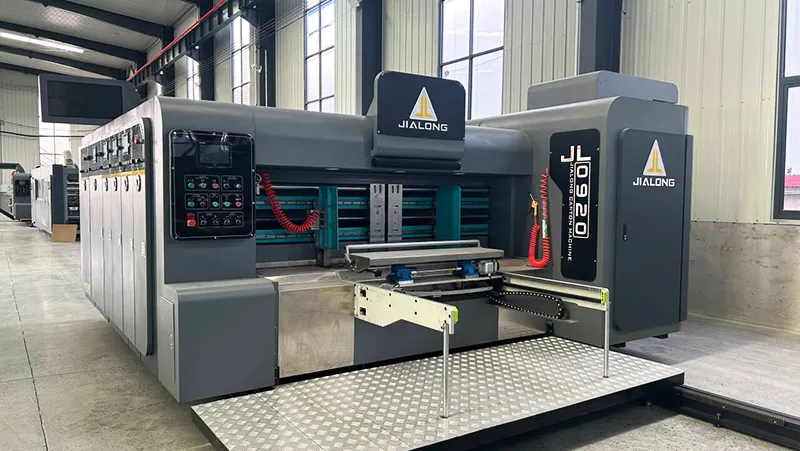

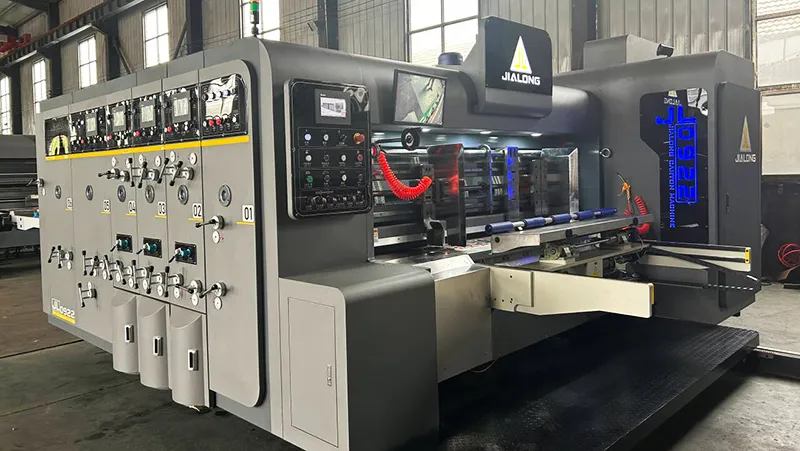

Automatic High Speed Flexo Printer Slotter Die Cutter Stacker
  • Automatic High Speed Flexo Printer Slotter Die Cutter Stacker
  • Automatic High Speed Flexo Printer Slotter Die Cutter Stacker
  • Automatic High Speed Flexo Printer Slotter Die Cutter Stacker
  • Automatic High Speed Flexo Printer Slotter Die Cutter Stacker
  • Automatic High Speed Flexo Printer Slotter Die Cutter Stacker
    • Request a Quote
    Description

    Designed for high demands and reliable performance, this flexo printer slotter die cutting machine stands out for its user-friendly operation and can quickly complete setup, modifications, execution, replacement, and memory functions with precise data display. Combining printing, slotting, die-cutting, and stacking capabilities, it operates at an impressive speed of up to 150 pieces per minute, significantly enhancing production efficiency in paper manufacturing. This carton converting machine not only boosts productivity but also ensures consistent quality, making it an important asset for modern carton production lines.

    Features
    • All drive rollers are made of premium steel, chrome-plated, and polished for durability and smooth operation
    • The main drive roller uses a keyless connection to reduce gaps, ensuring accurate printing
    • An automatic oil balance system keeps all unit oil levels even
    • Features PLC control with automatic zero reset and memory functions
    • Clients can choose between steel or ceramic anilox rollers, with patterns tailored to specific needs
    Specifications
    Model JLA950-1800 JLA950-2000 JLA950-2200 JLA1224-2200 JLA1226-2400
    Max. machine speed (sheets/min) 150 150 150 150 150
    Economic printing speed (sheets/min) 120 120 120 120 120
    Max. sheet size (mm) 950×2000 950×2200 950×2400 1270×2400 1270×2600
    Min. sheet size (mm) 260×500 260×500 260×500 350×800 350×800
    Min. space of slotting (obverse knife) (mm) 140×140×140×140 150×150×150×150
    Min. space of slotting (reverse knife) (mm) 260×60×260×60 280×60×280×60
    Max. depth of slot (mm) 240 240 240 300 300
    Sheet size with skip feeding (mm) 1200×2000 1200×2200 1200×2400 1500×2400 1500×2600
    Max. printing size (mm) 950×1800 950×2000 950×2200 1300×2200 1300×2400
    Standard printing plate thickness (mm) 7.2 7.2 7.2 7.2 7.2
    Main Configuration

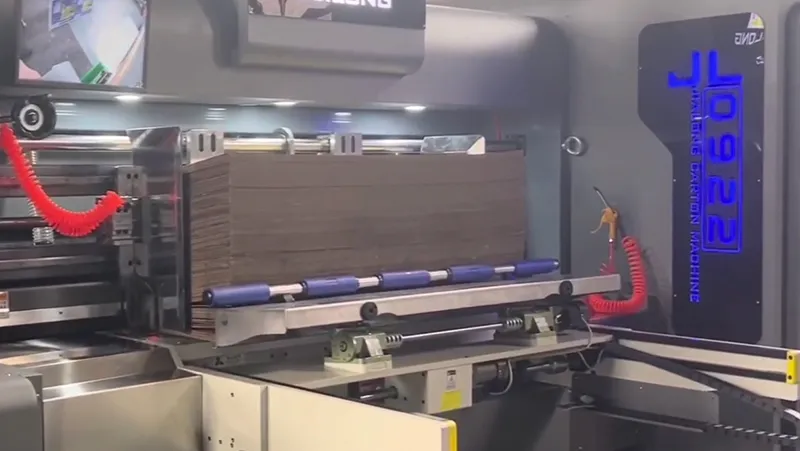

    • Feeding Unit
      Feeding Unit
      Feeding Unit
      Adopts a sun-wheel feeder with vacuum-assisted board feeding to ensure smooth and orderly feeding; the air volume can be adjusted according to the curvature of the corrugated board.
      A main motor safety interlock prevents the motor from starting unless all machine sections are securely locked.
      Both continuous feeding and skip feeding are available, in addition to an integrated counting device.
      The dual rubber feed rollers feature grooved surfaces to prevent excessive pressure on the corrugated board.
      The rubber feed roller incorporates a pneumatic cushioning device for accurate feeding; this design maintains stable feeding when the roller gap is small and board hardness varies.
      The side guides are adjusted electrically and include a digital position display; an automatic pneumatic alignment device is available as an option.
      The rear guide is electrically adjusted, while the front guide gap is adjusted manually and synchronously.
      A brush-type dust-removal system with a suction blower removes paper dust before printing; air volume can be adjusted according to the board size.
      Each feeding unit can be moved electrically to the left or right; an audible warning sounds during movement to ensure safe operation.
      The electronic counter allows preset production quantities. An alarm is triggered automatically when the target is reached. With the optional touchscreen system, production data can be displayed on screen.

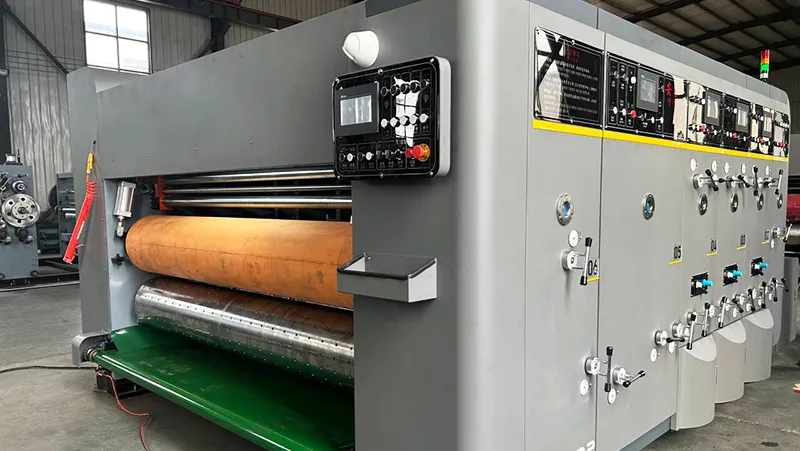

    • Printing Unit
      Printing Unit
      The gapless printing cylinder is precision ground, dynamically balanced, and hard-chrome-plated to ensure smooth and stable operation.
      A quick-change printing plate system makes plate installation and removal easy. A foot switch controls forward and reverse rotation of the printing cylinder.
      The gap adjustment for the feed roller, impression roller, rubber roller, and anilox roller uses self-locking mechanisms to keep settings stable.
      The printing cylinder phase is electrically adjusted via the PLC over a full 360°. Correction values can be entered directly, and adjustments can be made while the machine is running or stopped.
      Axial movement of the printing cylinder is electrically controlled via the PLC. Correction values can be set according to printing deviation, with an adjustment range of ±10 mm.
      A pneumatic braking device locks the phase position when a printing unit is opened or cleaned, preventing movement and keeping the original gear position unchanged.
      Pneumatic lifting of the anilox roller is synchronized with the board feeding system. The anilox rollers lower one by one when feeding starts and automatically lift when feeding stops.
      A pneumatic diaphragm pump ensures automatic ink circulation and supports water-assisted cleaning.
      The printing plate cleaning memory function automatically returns the printing cylinder to its original printing position after cleaning.

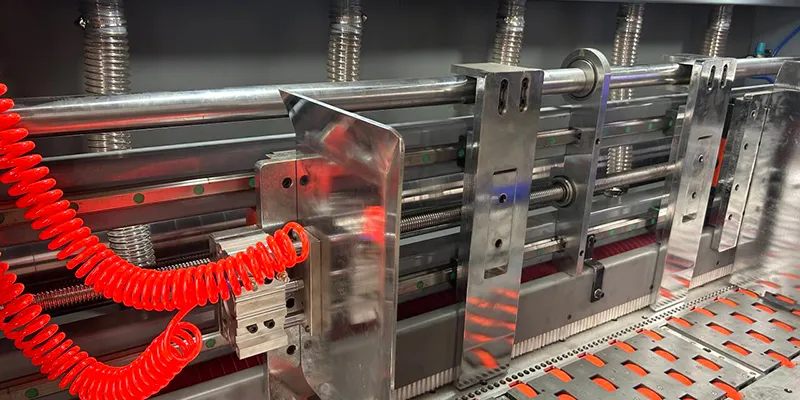

    • Slotting & Creasing Unit
      Slotting & Creasing Unit
      Pre-creasing wheels help prevent the corrugated board from cracking during creasing.
      The single-shaft, double-knife slotting structure allows the carton height to be adjusted electrically by entering data through the PLC, with touchscreen adjustment available as an option.
      Slotting phase can be adjusted electrically through the PLC over a full 360°, and correction data can be entered while the machine is running or stopped. A touchscreen control option is available.
      The slotting knives and creasing wheels are moved horizontally through synchronized electric adjustment.
      Gap adjustment for the creasing rollers and slotting knife rollers adopts self-locking mechanisms.
      The carton-height adjustment system includes an anti-collision device that protects the slotting knives and machine components.
      Equipped with an additional anti-collision device that protects the slotting knife holders during electrically controlled horizontal movement.
      The sawtooth slotting knives are made of alloy steel and are heat-treated and precision-ground for wear resistance, sharp cutting edges, and accurate slotting; the two-piece cutting knife design further improves cutting precision.
      Dies for ventilation holes and hand holes are available as optional equipment.

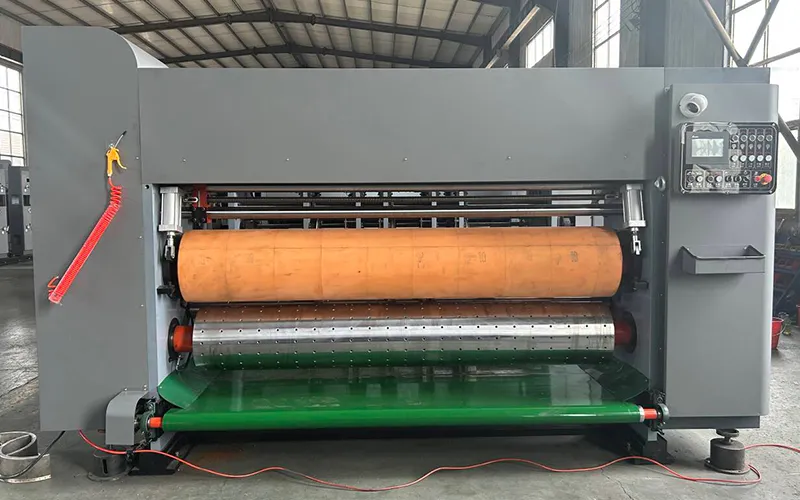

    • Die Cutting Unit
      Die Cutting Unit
      The rubber cushion roller is mechanically driven to oscillate laterally over a 40 mm range, helping to distribute wear evenly across the cushion surface.
      Die-cutting phase can be electrically adjusted via the PLC over a full 360° and correction data can be input while the machine is running or stopped. A touchscreen control system is available as an option.
      Axial movement of the die-cutting cylinder is electrically controlled via the PLC; correction data can be entered based on die-cutting deviation, with an adjustment range of 10 mm. Touchscreen control is available as an option.
      The gap between the rubber cushion roller and the die-cutting cylinder is adjusted using a self-locking mechanism. A pneumatic quick-adjustment device enables fast, wide-range setting changes, reducing cushion wear and extending service life.
      Feed roller gap adjustment also adopts a self-locking structure.
      A speed compensation system synchronizes the rubber cushion roller with the die-cutting cylinder. By regulating the surface speed of the cushion in line with the die cylinder, the system helps ensure the finished carton profile accurately matches the die design.
      A rubber cushion repair device is supplied with the machine, allowing the cushion to be refurbished and reused.

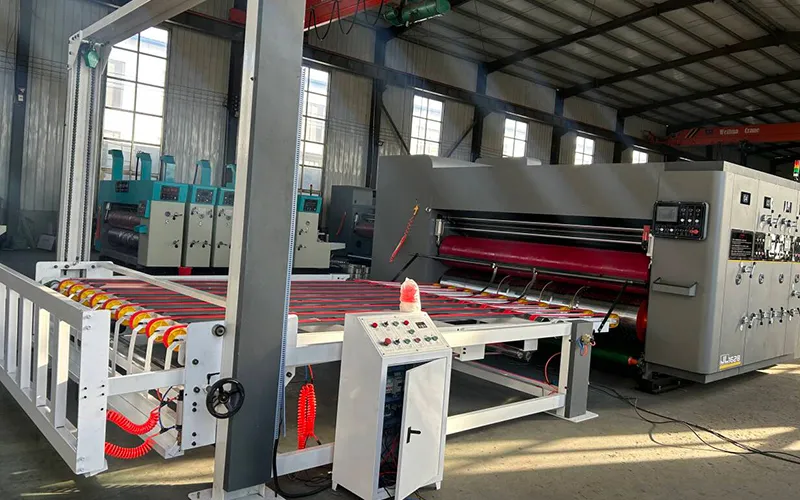

    • Automatic Stacking Unit
      Automatic Stacking Unit
      The paper receiving arms are manually operated, and the working height can be adjusted as required.
      The tension of each receiving arm belt can be independently adjusted.
      The stacking platform is driven up and down by a heavy-duty chain transmission system.
      The platform angle automatically adjusts according to the stack height and board condition. The lifting motor is equipped with an electric brake to securely hold the platform in position.
      Pneumatic-controlled receiving support plate. When the stack reaches the preset height, the plate automatically extends to support incoming sheets.
      The complete stacking system is 5.5 m in length and consists of receiving, conveying, and collecting sections; corrugated board is transferred via friction belts.
      Basic specifications:

      Maximum stacking height: 1,600 mm

      Conveyor drive motor: 2.2 kW, speed-controlled, 1 set

      Platform lifting motor: 3 kW, 1 set

      Paper-stacking arm cylinder: Ø80 × 300 mm, equipped with a three-position, five-way solenoid valve
