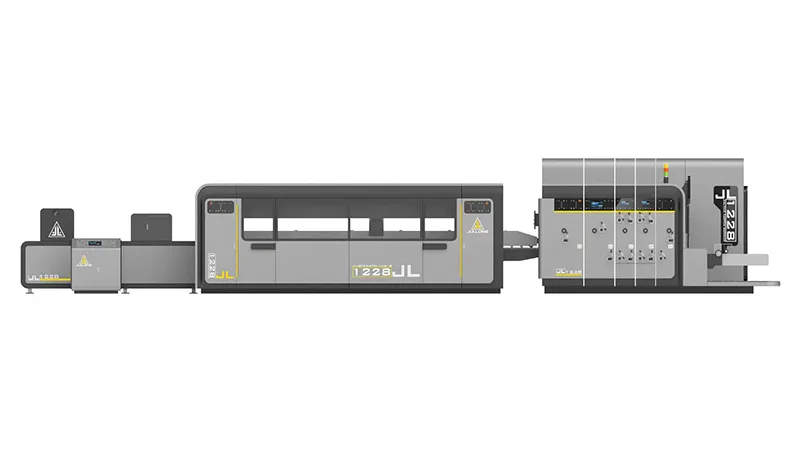

Automatic Flexo Printer Slotter Die Cutter with Inline Folder Gluer

Corrugated cardboard converting machine combining printing, slotting, die-cutting, folding and gluing

Automatic Flexo Printer Slotter Die Cutter with Inline Folder Gluer
  • Automatic Flexo Printer Slotter Die Cutter with Inline Folder Gluer
  • Automatic Flexo Printer Slotter Die Cutter with Inline Folder Gluer
  • Automatic Flexo Printer Slotter Die Cutter with Inline Folder Gluer
  • Automatic Flexo Printer Slotter Die Cutter with Inline Folder Gluer
  • Automatic Flexo Printer Slotter Die Cutter with Inline Folder Gluer
    • Request a Quote
    Description

    This carton converting machine enhances your production process by combining printing, slotting, die-cutting, gluing, and bundling into one operation. Designed for high efficiency and rapid order changes, it’s perfect for large-scale carton manufacturing.

    The fully automated production management system allows you to input order specifications via a touchscreen, enabling the carton converting machine to automatically adjust all gaps and parameters with precision and reliability, eliminating the need for manual intervention.

    Features
    • Integrated CNC control system for troubleshooting, production management, and remote maintenance
    • Powerful dust collector with anti-static bar for concentrated dust collection and minimal ECT loss
    • High-precision transfer structure using ceramic vacuum transfer wheels for accurate registration
    • Crease slotting device to prevent crease line breakage and ensure better folding results
    • Equipped with internationally branded electrical components and transmission bearings, CE certified
    Specifications
    Model FFG950-1800 FFG950-2000 FFG950-2200 FFG4212-2200 FFG4212-2400
    Max. machine speed (sheets/min) 200 200 200 180 180
    Economic printing speed (sheets/min) 160 160 160 150 150
    Max. sheet size (mm) 950×2000 950×2200 950×2400 1300×2400 1300×2600
    Min. sheet size (mm) 260×500 260×500 260×500 350×800 350×800
    Min. space of slotting (obverse knife) (mm) 140×140×140×140 150×150×150×150
    Min. space of slotting (reverse knife) (mm) 260×60×260×60 280×60×280×60
    Max. depth of slot (mm) 240 240 240 300 300
    Sheet size with skip feeding (mm) 1200×2000 1200×2200 1200×2400 1500×2400 1500×2600
    Max. printing size (mm) 950×1800 950×2000 950×2200 1300×2200 1300×2400
    Standard printing plate thickness (mm) 7.2 7.2 7.2 7.2 7.2
    Main Configuration
    • Folding and Gluing Unit
      The constant-temperature gluing system features a large, mesh-patterned glue wheel with motorized position adjustment
      A high-rigidity folding beam maintains folding accuracy and stable operation at high production speeds
      The folding beam is securely mounted to the floor and moves along linear guideways for smooth, precise adjustment
      Spring-loaded transfer wheels are equipped with a motorized pneumatic gap-adjustment system to ensure smooth and reliable carton transfer
      Final folding correction wheels help eliminate fishtailing, with the wheel gap controlled electrically
      Motor-driven folding belts correct folding deviations and improve carton alignment
    • Tensioning Unit
      CNC-linked controls allow fast and convenient adjustment
      Flexible guide wheels and clamped upper and lower belts maintain stable carton transfer
      Multiple waste-removal devices, including air knives, brushes, and electric roller brushes, provide effective removal of paper scraps and dust
      An adjustable constant-temperature gluing system maintains a stable glue temperature to support consistent bonding performance
      The mesh-pattern gluing wheel system provides stable glue application; both the glue volume and gluing position can be adjusted electrically
    • Counter Ejector Unit
      High-speed down counting and stacking prevent marking or smearing of printed cartons
      Side squaring and a pneumatic pushing plate keep carton stacks neat and aligned
      Multiple servo drivers for rapid and accurate stacking and counting
      The motorized control allows the counter ejector unit to be moved laterally
    • Strapping Unit
      Supports automatic strapping after automatic stitching
      Automated operation reduces dependence on manual labor and simplifies the packaging process
      The compact process requires no manual intervention during normal operation
      Cartons are strapped firmly to minimize rebound and reduce damage to glued joints and carton edges
      The automatic strapping unit reduces labor requirements by approximately 2–4 operators compared with conventional strapping equipment and by 10–20 operators compared with manual strapping
      Suitable for export packaging and for cartons used for beverages, beer, instant noodles, ceramic tiles, and other products requiring secure packaging
